Ideal strain gauge location for evaluating stress intensity factor in edge-cracked aluminum plates

Aabid, Abdul and Baig, Muneer and Hrairi, Meftah (2025) Ideal strain gauge location for evaluating stress intensity factor in edge-cracked aluminum plates. Journal of the Mechanical Behavior of Materials, 34 (1). pp. 1-14. ISSN 0334-8938 E-ISSN 2191-0243

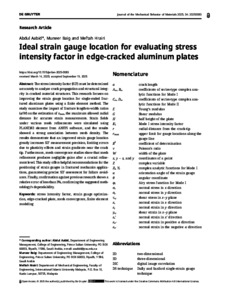

	PDF - Published Version Download (4MB)

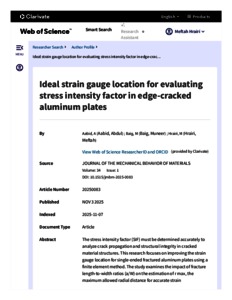

	PDF - Supplemental Material Download (184kB)

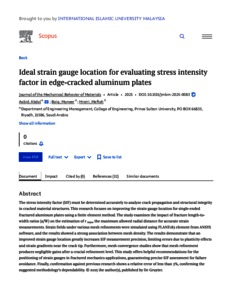

	PDF - Supplemental Material Download (187kB)

Abstract

The stress intensity factor (SIF) must be determined accurately to analyze crack propagation and structural integrity in cracked material structures. This research focuses on improving the strain gauge location for single-ended fractured aluminum plates using a finite element method. The study examines the impact of fracture length-to-width ratios (a/W) on the estimation of rmax, the maximum allowed radial distance for accurate strain measurements. Strain fields under various mesh refinements were simulated using PLANE183 element from ANSYS software, and the results showed a strong association between mesh density. The results demonstrate that an improved strain gauge location greatly increases SIF measurement precision, limiting errors due to plasticity effects and strain gradients near the crack tip. Furthermore, mesh convergence studies show that mesh refinement produces negligible gains after a crucial refinement level. This study offers helpful recommendations for the positioning of strain gauges in fractured mechanics applications, guaranteeing precise SIF assessment for failure avoidance. Finally, confirmation against previous research shows a relative error of less than 3%, confirming the suggested methodology’s dependability patch repair parameters, offering a more resilient and cost-effective solution for aerospace and structural applications.

Item Type:	Article (Journal)
Uncontrolled Keywords:	stress intensity factor, strain gauge optimization, edge-cracked plate, mesh convergence, finite element modeling
Subjects:	T Technology > TA Engineering (General). Civil engineering (General) > TA349 Mechanics of engineering. Applied mechanics T Technology > TA Engineering (General). Civil engineering (General) > TA630 Structural engineering (General) T Technology > TJ Mechanical engineering and machinery > TJ212 Control engineering
Kulliyyahs/Centres/Divisions/Institutes (Can select more than one option. Press CONTROL button):	Kulliyyah of Engineering Kulliyyah of Engineering > Department of Mechanical Engineering
Depositing User:	Prof. Dr. Meftah Hrairi
Date Deposited:	26 Nov 2025 11:17
Last Modified:	26 Nov 2025 11:17
Queue Number:	2025-11-Q157
URI:	http://irep.iium.edu.my/id/eprint/124596
