Effect of inclination angle and motor’s speed on an Archimedean Screw Pump’s output volume flow rate for pumping stagnant water

Abd Rahim, Nuranisa Suhada and Yang, Chuan Choong and Ishak, Muhammad Haniff (2025) Effect of inclination angle and motor’s speed on an Archimedean Screw Pump’s output volume flow rate for pumping stagnant water. In: 6th International Conference on Advances in Manufacturing and Materials Engineering, ICAMME 2024, 13-14 August 2024, Kuala Lumpur.

	PDF - Published Version Restricted to Repository staff only Download (616kB) | Request a copy

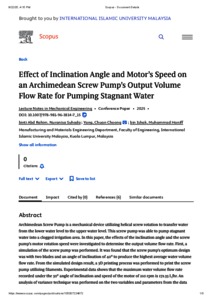

Preview	PDF - Supplemental Material Download (144kB) | Preview

Abstract

Archimedean Screw Pump is a mechanical device utilizing helical screw rotation to transfer water from the lower water level to the upper water level. This screw pump was able to pump stagnant water into a clogged irrigation area. In this paper, the effects of the inclination angle and the screw pump’s motor rotation speed were investigated to determine the output volume flow rate. First, a simulation of the screw pump was performed. It was found that the screw pump's optimum design was with two blades and an angle of inclination of 40° to produce the highest average water volume flow rate. From the simulated design result, a 3D printing process was performed to print the screw pump utilizing filaments. Experimental data shows that the maximum water volume flow rate recorded under the 30° angle of inclination and speed of the motor of 210 rpm is 172.33 L/hr. An analysis of variance technique was performed on the two variables and parameters from the data obtained. The inclination angle and motor speed were significant factors for the optimum water volume flow rate at the outlet. Therefore, the work shows that a small-scale Archimedean Screw Pump was able to pump stagnant water from a clogged irrigation area.

Item Type:	Proceeding Paper (Invited Papers)
Uncontrolled Keywords:	Angle of inclination; Archimedean screw pump; Rotation speed; Stationary water; Water flow
Subjects:	T Technology > T Technology (General) > T55.4 Industrial engineering.Management engineering. T Technology > TJ Mechanical engineering and machinery
Kulliyyahs/Centres/Divisions/Institutes (Can select more than one option. Press CONTROL button):	Kulliyyah of Engineering Kulliyyah of Engineering > Department of Manufacturing and Materials Engineering
Depositing User:	Ir Dr Chuan Choong Yang
Date Deposited:	22 Aug 2025 16:36
Last Modified:	22 Aug 2025 16:37
URI:	http://irep.iium.edu.my/id/eprint/122871
