Determination of in-plane mechanical properties of woven composite material using digital image correlation

Jamaludin, Luqman Harith Azamuddin and Hrairi, Meftah and Mohd Yatim, Norfazrina Hayati and Aabid, Abdul (2026) Determination of in-plane mechanical properties of woven composite material using digital image correlation. Journal of Aeronautics, Astronautics and Aviation, 58 (8). pp. 1413-1428. ISSN 1990-7710

	PDF - Published Version Restricted to Registered users only Download (1MB) | Request a copy
Preview	PDF - Supplemental Material Download (187kB) | Preview

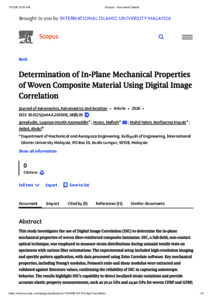

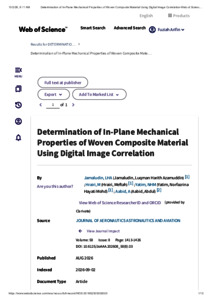

Preview	PDF - Supplemental Material Download (196kB) | Preview

Abstract

This study investigates the use of Digital Image Correlation (DIC) to determine the in-plane mechanical properties of woven fiber-reinforced composite laminates. DIC, a full-field, non-contact optical technique, was employed to measure strain distributions during uniaxial tensile tests on specimens with various fiber orientations. The experimental setup included high-resolution imaging and speckle pattern application, with data processed using Zeiss Correlate software. Key mechanical properties, including Young’s modulus, Poisson’s ratio and shear modulus were extracted and validated against literature values, confirming the reliability of DIC in capturing anisotropic behavior. The results highlight DIC’s capability to detect localized strain variations and provide accurate elastic property measurements, such as 70.21 GPa and 24.90 GPa for woven CFRP and GFRP, respectively, making it a powerful tool for composite characterization and modeling. Tests were also conducted on natural fiber and hybrid composites.

Item Type:	Article (Journal)
Uncontrolled Keywords:	DIC, Composite, Woven, In-plane, mechanical properties
Subjects:	T Technology > T Technology (General) T Technology > TA Engineering (General). Civil engineering (General) > TA349 Mechanics of engineering. Applied mechanics T Technology > TA Engineering (General). Civil engineering (General) > TA630 Structural engineering (General)
Kulliyyahs/Centres/Divisions/Institutes (Can select more than one option. Press CONTROL button):	Kulliyyah of Engineering > Department of Mechanical Engineering Kulliyyah of Engineering
Depositing User:	Prof. Dr. Meftah Hrairi
Date Deposited:	02 Oct 2026 09:25
Last Update:	02 Oct 2026 09:25
Queue Number:	2026-09-Q5362
URI:	http://irep.iium.edu.my/id/eprint/131632
Indexed In:	WOS and SCOPUS, Google Scholar
