Mohd Azmi, Mohd Syahriman and Othman, Mohd Yusof and Sopian, Kamaruzzaman and Ruslan, Mohd Hafidz and Abdul Majid, Zafri Azran and Fudholi, Ahmad and Yasin, J M (2012) Development of a solar assisted drying system using double-pass solar collector with finned absorber. In: 1st International Conference on Mechanical Engineering Research 2011 (ICMER2011), 5-7 December 2011, Kuantan, Pahang, Malaysia.
|
PDF
- Published Version
Download (813kB) | Preview |
|
|

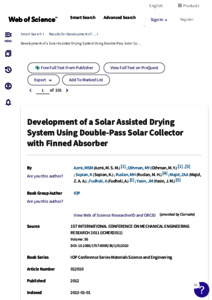

PDF (WOS)
- Supplemental Material
Download (421kB) | Preview |
|
|

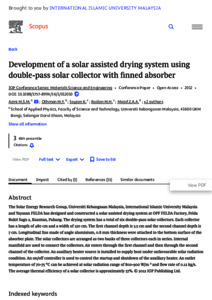

PDF (Scopus)
- Supplemental Material
Download (203kB) | Preview |
Abstract
The Solar Energy Research Group, Universiti Kebangsaan Malaysia, International Islamic University Malaysia and Yayasan FELDA has designed and constructed a solar assisted drying system at OPF FELDA Factory, Felda Bukit Sagu 2, Kuantan, Pahang. The drying system has a total of six double-pass solar collectors. Each collector has a length of 480 cm and a width of 120 cm. The first channel depth is 3.5 cm and the second channel depth is 7 cm. Longitudinal fins made of angle aluminium, 0.8 mm thickness were attached to the bottom surface of the absorber plate. The solar collectors are arranged as two banks of three collectors each in series. Internal manifold are used to connect the collectors. Air enters through the first channel and then through the second channel of the collector. An auxiliary heater source is installed to supply heat under unfavourable solar radiation condition. An on/off controller is used to control the startup and shutdown of the auxiliary heater. An outlet temperature of 70–75 °C can be achieved at solar radiation range of 800–900 W/m2 and flow rate of 0.12 kg/s. The average thermal efficiency of a solar collector is approximately 37%.
| Item Type: | Proceeding Paper (Other) |
|---|---|
| Uncontrolled Keywords: | Solar drying, Solar collector, Double-pass solar collector, Finned absorber, Solar assisted drying system |
| Subjects: | T Technology > TJ Mechanical engineering and machinery T Technology > TJ Mechanical engineering and machinery > TJ163.26 Energy conservation |
| Kulliyyahs/Centres/Divisions/Institutes (Can select more than one option. Press CONTROL button): | Kulliyyah of Allied Health Sciences > Department of Diagnostic Imaging and Radiotherapy |
| Depositing User: | Dr. Zafri Azran Abdul Majid |
| Date Deposited: | 19 Aug 2026 04:50 |
| Last Update: | 19 Aug 2026 04:50 |
| Queue Number: | 2026-08-Q4800 |
| URI: | http://irep.iium.edu.my/id/eprint/130873 |
