Mahadi, Aisyah Shafiqah and Mohd Razib, Mohd Asyraf and Md Ralib @ Md Raghib, Aliza 'Aini and Ahmad, Farah and Mohd Yusoff, Marmeezee (2025) Multiwalled carbon nanotube/chitosan composite on quartz crystal microbalance for formaldehyde detection. Bulletin of Electrical Engineering and Informatics, 14 (4). pp. 2638-2648. ISSN 2089-3191 E-ISSN 2302-9285
|

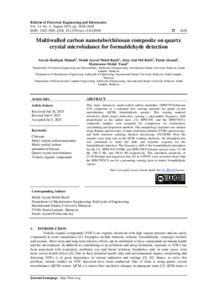

PDF
- Published Version
Download (1MB) | Preview |
Abstract
This study introduces multi-walled carbon nanotubes (MWCNT)/chitosan (CS) composite as a potential new sensing material for quartz crystal microbalance (QCM) formaldehyde sensors. This sensing material selectively binds target molecules, causing a measurable frequency shift proportional to the added mass. CS, MWCNT, and the MWCNT/Cs composite samples were prepared for comparison via sonification, crosslinking and dispersion methods. The morphology character was studied using Raman spectroscopy, Fourier transform infrared (FTIR) spectroscopy, and field emission scanning electron microscopy (FE-SEM). Next the samples were drop cast on the QCM working electrode. An adsorption test was conducted to study the static and dynamic response for the formaldehyde detection. The frequency shift of the formaldehyde adsorption for the CS, MWCNT-COOH, and MWCNT/CS-based sensors were 114.98 Hz, 108.23 Hz, and 196.63 Hz respectively. The calculated sensitivity of 23.48 Hz/ppm and regression line R2 at 0.95076 were recorded shows that the MWCNT/CS can be a promising sensing layer to detect formaldehyde vapour.
| Item Type: | Article (Journal) |
|---|---|
| Uncontrolled Keywords: | Chitosan; Multi-walled carbon nanotubes; Multi-walled carbon nanotubes/chitosan; Quartz crystal microbalance; Volatile organic compounds |
| Subjects: | T Technology > TP Chemical technology |
| Kulliyyahs/Centres/Divisions/Institutes (Can select more than one option. Press CONTROL button): | Kulliyyah of Engineering > Department of Biotechnology Engineering Kulliyyah of Engineering > Department of Electrical and Computer Engineering Kulliyyah of Engineering > Department of Mechatronics Engineering |
| Depositing User: | Dr Mohd Asyraf Mohd Razib |
| Date Deposited: | 12 Aug 2025 12:48 |
| Last Modified: | 12 Aug 2025 12:48 |
| URI: | http://irep.iium.edu.my/id/eprint/122521 |
